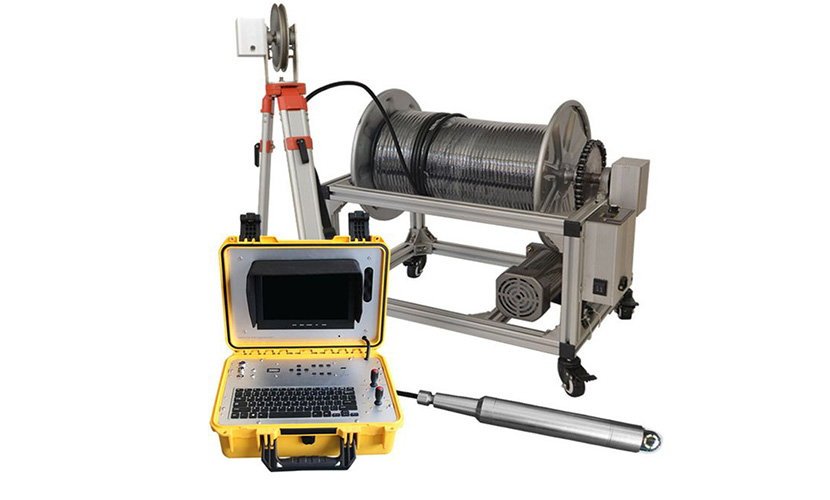

Underground Borehole Camera

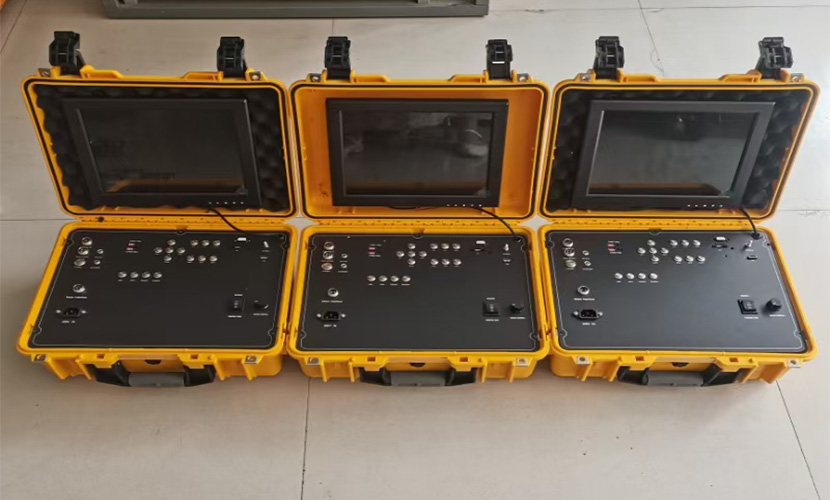

Main control box features include: APS main control box, size: 415*340*144； Voltage input: 12V/220V； Depth interface: connect depth sensor； Data interface: depth can be calibrated by yourself； Probe interface: connect the probe, transmit video and power； USB interface: a keyboard can be plugged in, and the well position and number number can be entered by oneself； Depth to zero: Please clear the depth before logging to ensure accurate measurement； Monitor: 12-inch high-brightness LED display, outdoor viewable； Save videos and snapshots； The ultra-high-definition SD card recorder comes standard with a 32G memory card, which can be played back on site；The control panel buttons operate the direction, angle of the underground camera, the brightness and focus of the light source, and the lifting and speed of the cable and camera； Switch bottom camera and side camera video with one click.

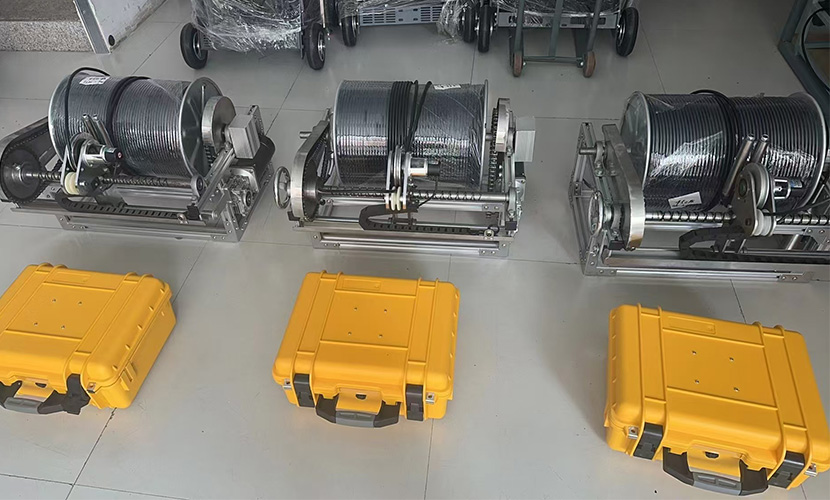

Features of Electric winch include: Coil winding frame material: iron;Motor: 250 watt power, forward and reverse rotation, adjustable turbine deceleration function, self-locking when power is off;Manual control of cable lift and speed;Winch: Stamping reinforced wire retaining plate.

Features of Down pulley include:Depth counting pulley: The downhole pulley has a depth counting function and requires a data cable to be connected to the main control box for use;Depth counting function: The depth is accurate to 0.005 meters. If there is an error, the depth can be calibrated;Depth to zero: Please reset the depth to zero before logging to ensure accurate counting.

Monitor features include: 12-inch BNC/VGA/HDMI/USB industrial control monitor;Contrast ratio: 450:1;Brightness: 500cd/㎡;Resolution: 1280*800
