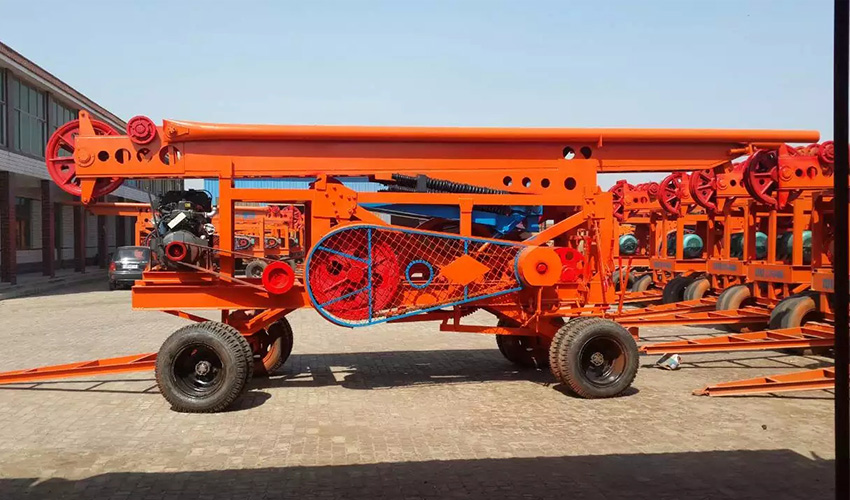

Cable percussion drilling rig

OVERVIEW：

Cable percussion drilling rig used for large diameter drilling for piling, water well up to 300m. 2500mm

Price: 15,000USD-30,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

akldrill@gmail.com
+86-15137425291

FEATURES

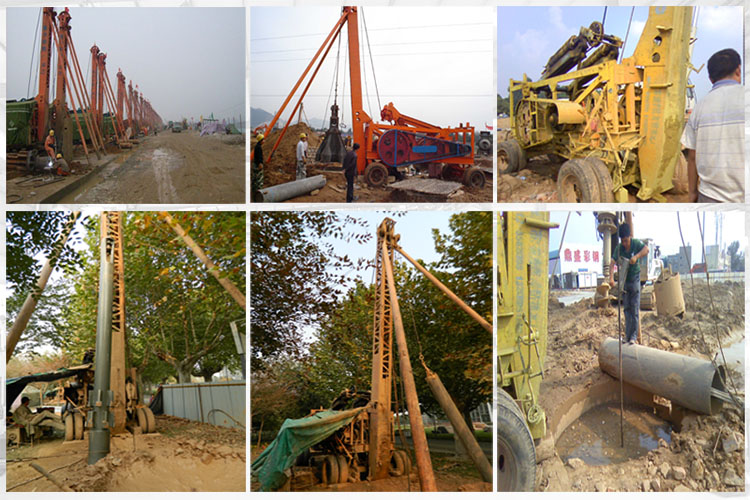

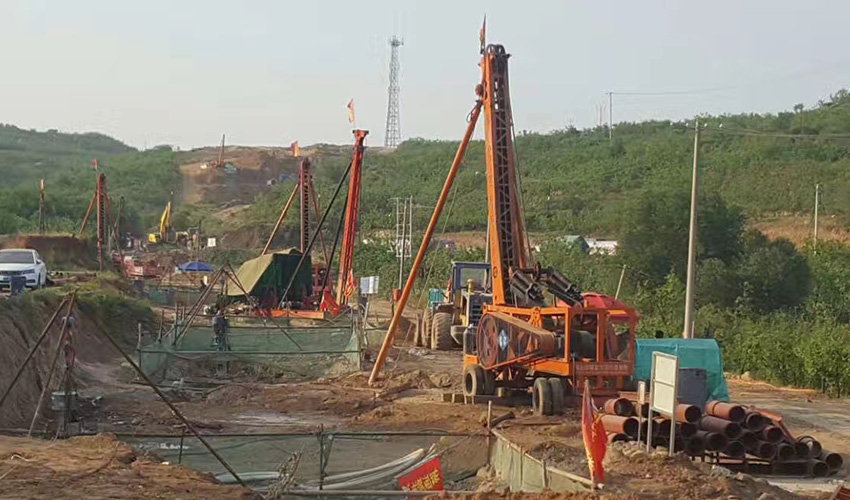

1. This cable percussion rig is well used for big diameter water well, piling, construction. Diameter max to 2000mm.

2. Such type can deal with diverse underground layer, even bed rock,

3. Woring efficient is low, it is well used in area working labor cost is very cheap. Such type drilling rig can't be replaced, since it has its advantage.

4. No need much drilling skills, easy to operate.

5. Normally, no need too much water to dig a hole.

TECHNICAL DATA

Mechanical features		Specifications
Dimensions(M)		9.302.503.10

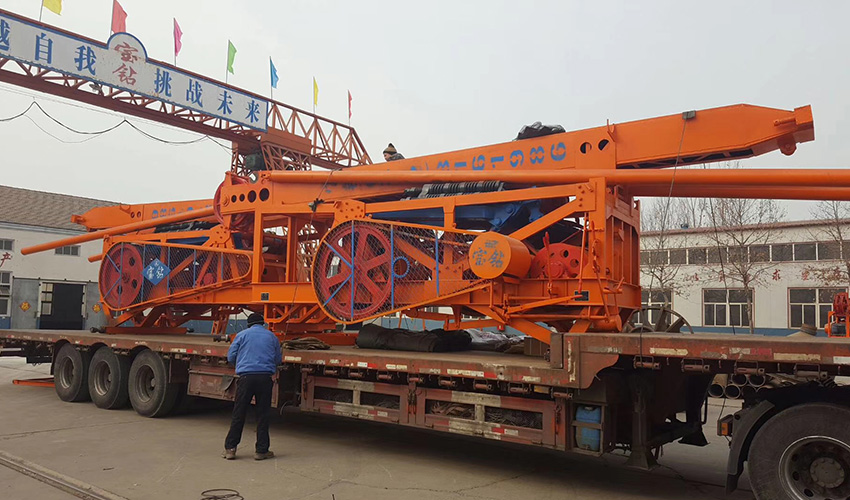

Transport dimensions(M)		9.302.282.80
Weight(kg)		9500
Drilling diameter(mm)		300-1800
Drilling depth(M)		300(when dia. Is 600mm)
Max. Weight of drill bit(kg)		5000
Impact stroke(mm)		Max.850,Min.700
Rate of impact(time/min)		38-42
Electric motor		Model YL280M2-6,55KW
Electric motor		980R/Min
Height of mast (M)		Single bar8.5-9.5m;
Height of mast (M)		Double bar12.5m
Load capacity of mast(kg)		50000
Hauling speed(km/h)		30
Lifting capacity of Hoist(N)	Front hoist	20096
Lifting capacity of Hoist(N)	Back hoist	68357
Steel wire rope of coiling block(M)	Front coiling block	6×37-dia.18 200-250(Left turning)
Steel wire rope of coiling block(M)	Back coiling block	6×19s+IWRC 200-300(Left turning)
Wheel	Tire size	7.50-20
Wheel	Steel ring size	20×7
