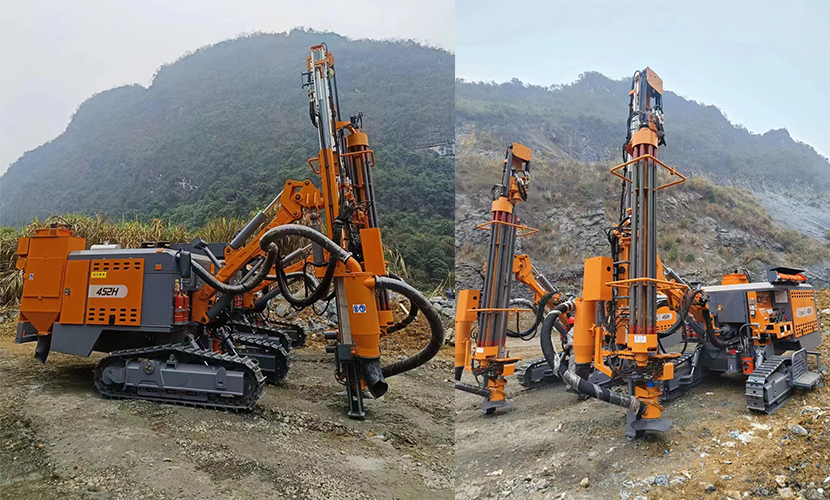

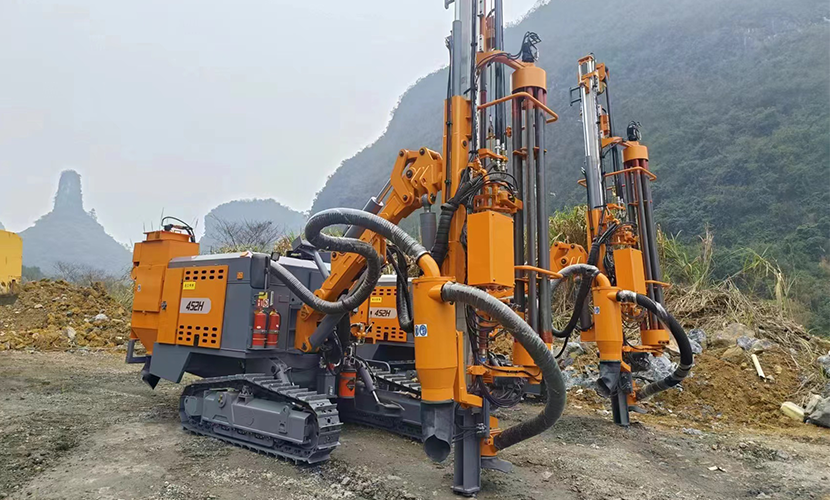

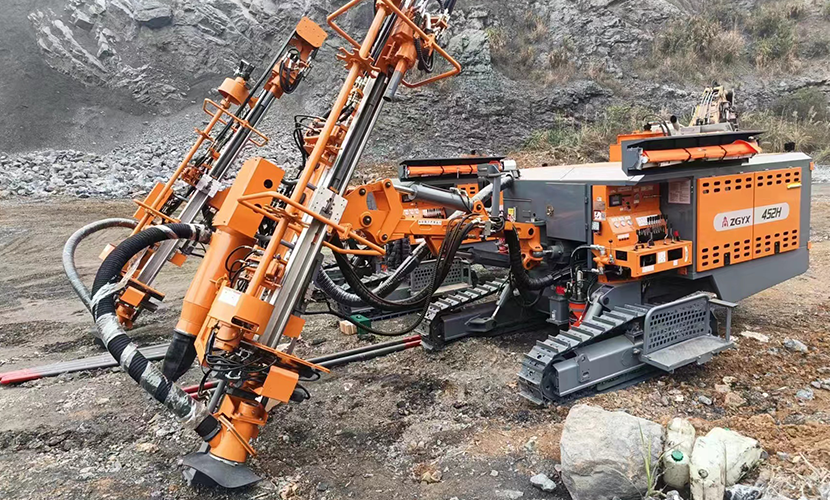

ZGYX 452H Integrated DTH Drilling Rig

OVERVIEW：

Integrated DTH Drilling Rig,Mainly used for down-the-hole drilling,Excellent performance

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1.Floating hose reel:The patented floating hose reel avoiding deformation point of hose and for longer hose service life.
2.High-strength aluminum alloy feed beam:Standard configured 5 - meter drill pipe with high-strength aluminum alloy feed beam and stainless steel protective cover，light weight, durable and efficient.
3.Hydraulic cylinder-steel wire rope feeding:Hydraulic cylinder - steel wire rope feeding for precision feed control and high torque rotary head for smooth movement.
4.New breakout table:New breakout table for pipe handling for better sight and operation convenience!
5.User-friendly safety cab:Wide view, user-friendly cab for safety with optional front window guardrail.
6.Strong traction force:Heavy duty track chassis, track frame hydraulic oscillation angle ±10° ,Strong traction force, high ground clearance and good off-road performance.

TECHNICAL DATA

ZGYX 452H INTEGRATED DTH DRILLING RIG
Drilling diameter(mm)	90-138	DTH hammer(mm)	4 Inch
Engine	Yuchai	Diesel tank volume(L)	300
Working pressure(bar)	1.8	Drilling rod(mm)	76*3000
Hole depth（m）	24	Rotation torque(N*m)	2200
Rig lifting force(T)	12	Diesel engine power(Kw)	191
Walking speed(km/h)	3.3	Uphill angle(°)	25
Size(m)	92.363	Weight(kg)	10360
