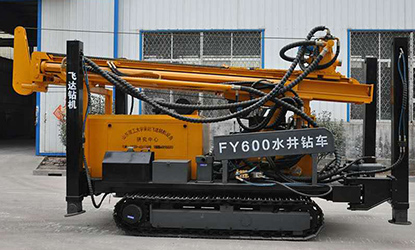

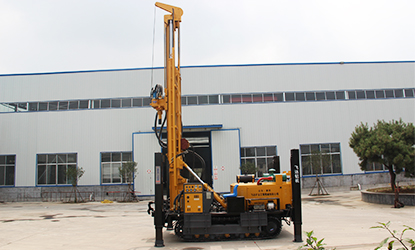

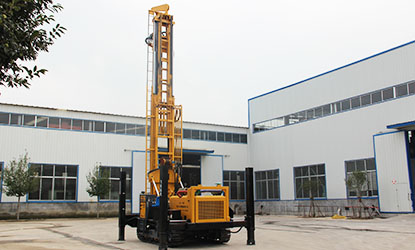

FY600 DTH driling rig

OVERVIEW：

FY600 water well drilling machine drill 600m depth, 140-350mm diameter. it works both air and mud.
Price: 45,000-60,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1. 132kw Cummins diesel engine, global warranty, easy to maintain and good steady quality.
2. Available DTH air drilling with air compressor and water drilling with mud pump.
3. DTH air drilling can break hard rock layer easily, 30m depth each hour.
4. Four Long hydraulic legs can help unload the drilling rig without crane. Save much money
5. High quality, strong structure steel crawler, easy to be driven in mud drilling site.
6. With extra winch and welder, easy to do some welding work and casing job.

TECHNICAL DATA

Technical Parameters of FY600 Drilling Rig
Type	FY600
The Weight	12T
Dimension	620022002950mm
Drilling Diameter	140-350mm
Drilling Depth	600m
One Push Length	6.6m
Driving Speed	2.5KM/H
Climbing Angles	30°
Power	132KW
Working Air Pressure	1.7-3.5MPA
Air Consumption	17-42m³/min
Drill Pipe Length	1.5m 2.0m 3.0m 6.0m
Drill Pipe Diameter	102mm 108mm 114mm
Rig Lifting Force	28T
Swing Speed	45-115 rpm
Swing Torque	8500-11000N.m
