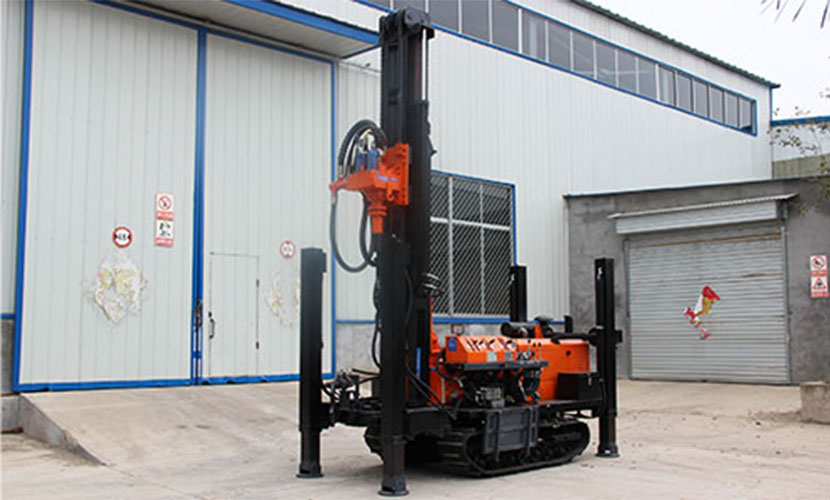

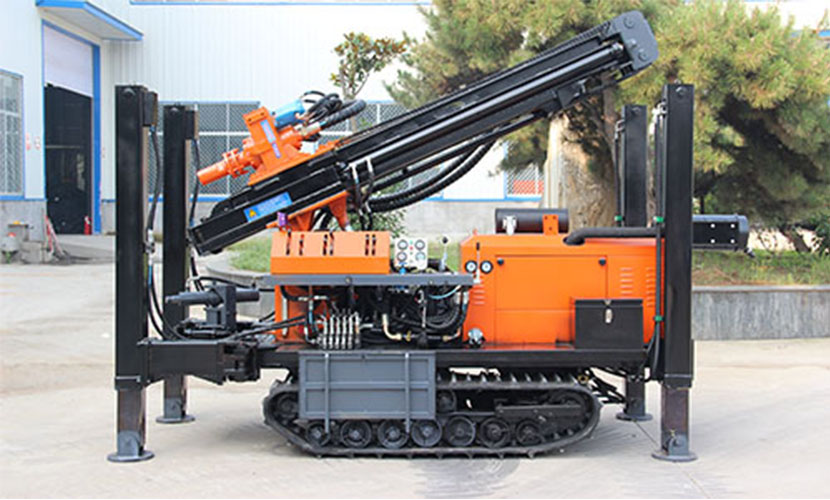

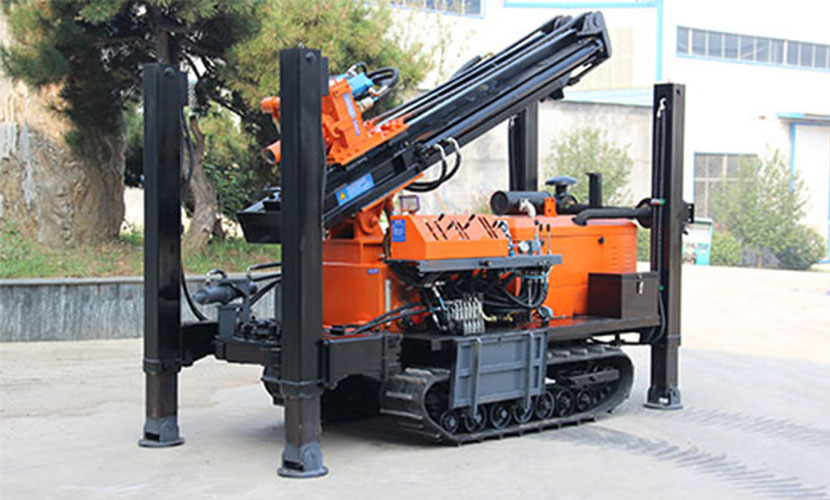

FY-180 DTH drilling rig

OVERVIEW：

FEATURES

1. It is equipped with a 60kw all-diesel engine.

2. Rubber track, easy to drive on the job site, and cheap.

3. Full hydraulic, hydraulic motor, hydraulic arm, hydraulic outrigger.

4. Small size, easy to move and work in narrow places.

5. It can carry out air drilling and mud drilling.

6. Accept customized orders and OEM orders.

7. Low maintenance cost.

TECHNICAL DATA

Technical Parameters of FY180 Drilling Rig
Type	FY180
The Weight	5.2T
Dimension	400016302250mm
Drilling Diameter	140-254mm
Drilling Depth	180m
One Push Length	3.3m
Driving Speed	2.5Kkm/h
Climbing Angles	30°
Power	60kw
Working Air Pressure	1.7-2.5MPA
Air Consumption	17-31m³/min
Drill Pipe Length	1.5m 2.0m 3.0m
Drill Pipe Diameter	76mm,89mm
Rig Lifting Force	1T
Swing Speed	45-70rpm
Swing Torque	3200-4600N.m
Swing Torque	3200-4600N.m
