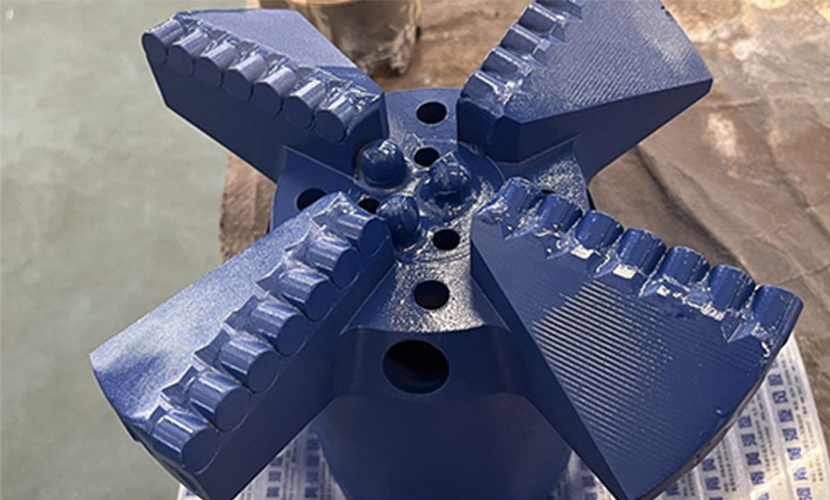

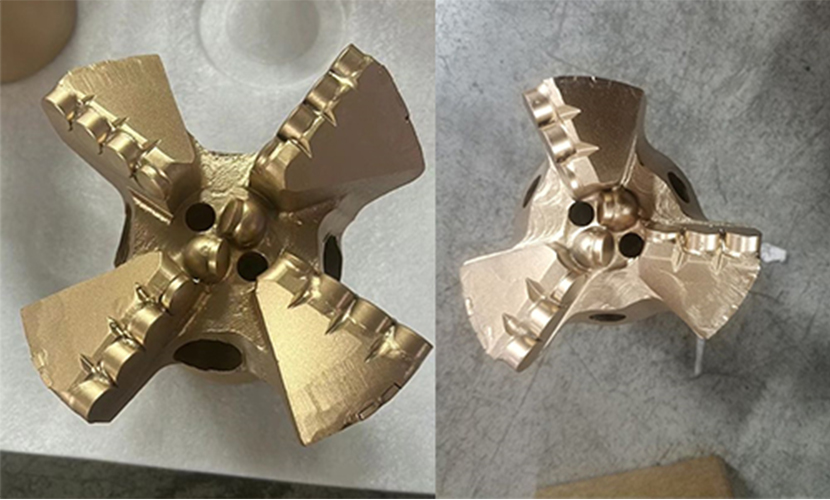

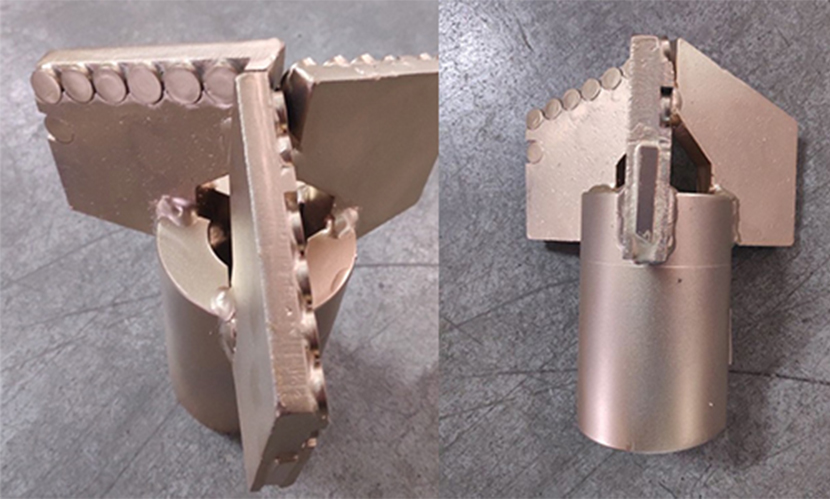

PDC drill bit.

OVERVIEW：

PDC Bit is a full-scale drilling bit, mainly be used in construction ,mining, geology, coal, water conservancy and hydropower, highway, high speed railway and bridge etc.
Price:100USD-400USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1. High drilling efficiency: PDC water well drill bits have a high drilling speed due to their sharp and durable polycrystalline diamond compact (PDC) cutters.
2. Long service life: The PDC cutters on the drill bits are made of synthetic diamond materials, which have excellent wear resistance and can withstand the harsh drilling conditions for a long time.
3. Good stability: PDC water well drill bits have good stability during drilling, which ensures smooth and accurate drilling operations.
4. Versatility: PDC water well drill bits can be used for various drilling applications, including soft to medium-hard formations, making them suitable for a wide range of water well drilling projects.
5. Cost-effective: PDC water well drill bits offer a cost-effective solution for water well drilling due to their long service life and high drilling efficiency, reducing the overall drilling costs.

TECHNICAL DATA

line number	Specification （mm）	Drilling procedure parameters
line number	Specification （mm）	Drill pressure	Rotating speed	pump volume
1	28	300-700kg	300-350rpm	150-200/min
2	30	300-700kg	300-350rpm	150-200/min
3	32	300-700kg	300-350rpm	150-200/min
4	48	300-700kg	300-350rpm	120-160/min
5	56	320-800kg	250-350rpm	130-180/min
6	75	480-1200kg	200-300rpm	150-200/min
7	94	640-1600kg	150-250rpm	200-250/min
8	110	880-2200kg	120-200rpm	200-300min
9	152	1500-3000kg	100-200rpm	500-850/min
10	190	1800-4000kg	100-200rpm	600-1200/min
11	230	2200-4500kg	100-120rpm	750-1400/min
12	270	2400-5000kg	100-120rpm	1000-1500/min
