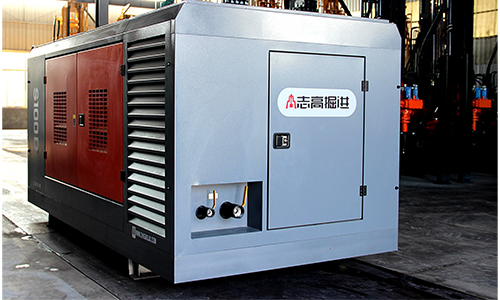

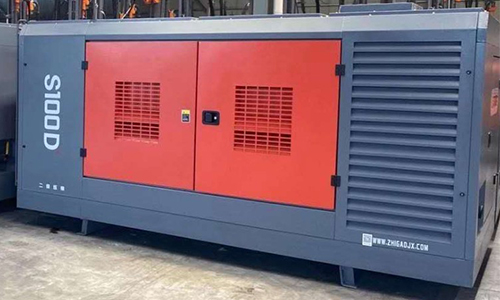

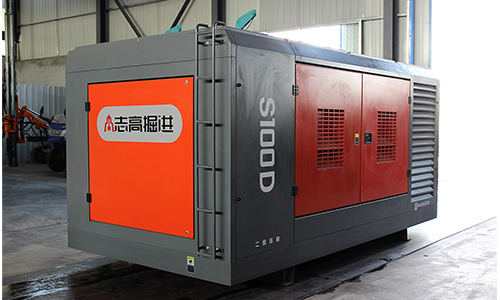

ZHIGAO S100D Industrial Equiment Stationary Screw Air Compressor

OVERVIEW：

This series air compressor is widely used for mining ,anchor DTH drilling ,water well drilling projects.

Price:32,000-34,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1,Greater fuel efficiency and energy saving;
2, Air filtration system with vacuum indication for dust environments;
3, Compressor oil and engine coolant coolers to optimize performance and extend engine life;
4, Efficient compressor oil filter;
5, Fuel filter with water separator;
6,Easy to remove, translucent PE fuel tank.

TECHNICAL DATA

Technical Parameters of S100D Screw Air Compressor
Type	S100D
Name designation	Diesel screw air compressor
Nominal displacement	31m³/min
Rated discharge pressure	25bar
Maintain oil change rate	120L
Compressed series	2 Step
Engine type	CA6DM2-42GAG31 XICHAI
Engine output	309kw
Fuel tank capacity	420L
Dimensions	396020002000mm
Total weight	4600kg
Air evacuation valve	G1-1/2 G2-1/2 inch
