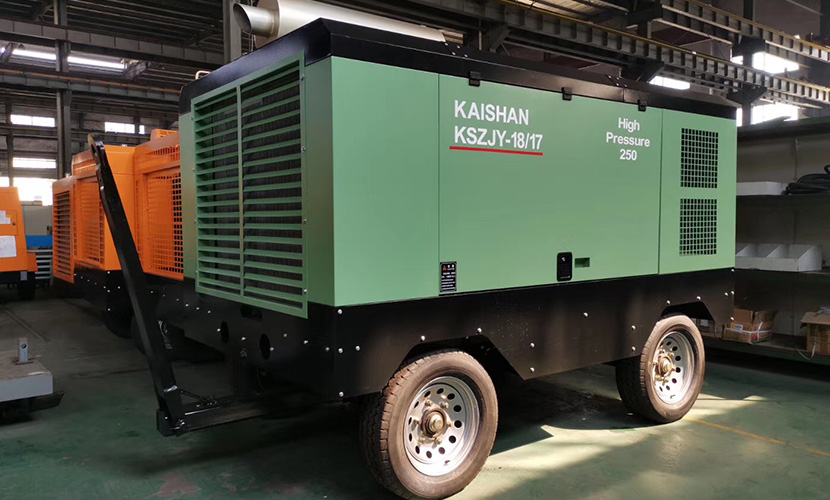

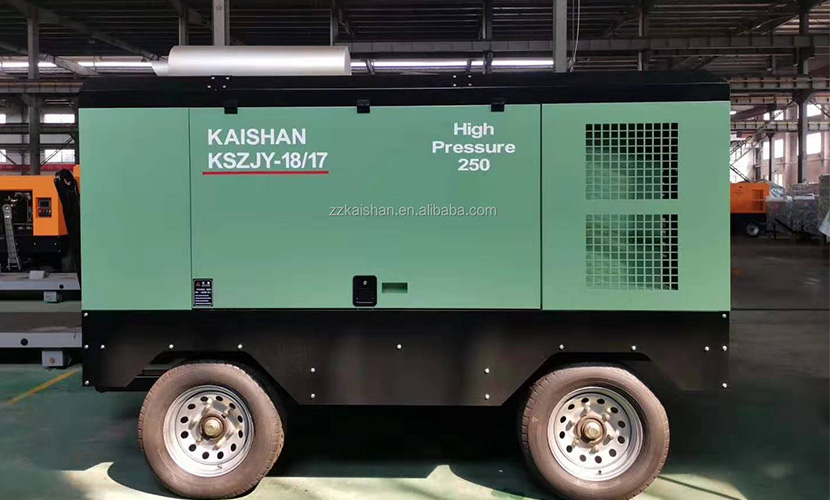

KSZJ-18/17, Kaishan air compressor.

OVERVIEW:

KSZJ-18/17 air compressor is widely used in highway,  mining, water conservancy.
Price:13500-15500USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1 Low noise, low vibration and easy operation
2 Low fuel consumption, long-distance outdoor use; comprehensive protection system, energy saving.
3  Diesel engine:  YUCHAI diesel engines ,low fuel consumption, and perfect after-sales service system.
4 Good adaptability: The air compressor automatically controls the air supply volume of the diesel engine by matching the demand of air consumption,which is equivalent to the variable frequency control of the electric screw air compressor.

TECHNICAL DATA
Technical Parameters of KSZJ-18/17air compressor
Type KSZJ-29/23
Gas flow rate 18m³/min
The rated exhaust pressure. 1.7Mpa
Weight 3200kg
Dimensions 3000*1800*2000mm
Engine YUCHAI 260HP
Type vertical, inline,water cooled
Inhalation method Turbocharged
Bore × Stroke × Number of Cylinders 108*132*6
Displacement 7.255L
Rated speed 1800r/min
Unload speed 1400r/min
Diesel oil capacity 21.9L
Fuel tank capacity 350L
Compression levels 1
Compressor Oil Capacity 48L
