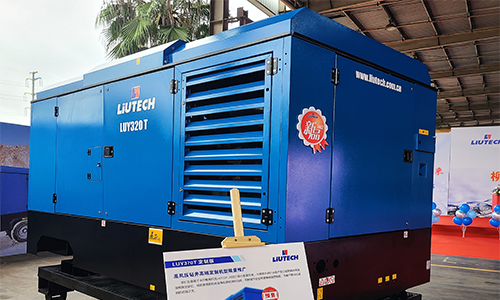

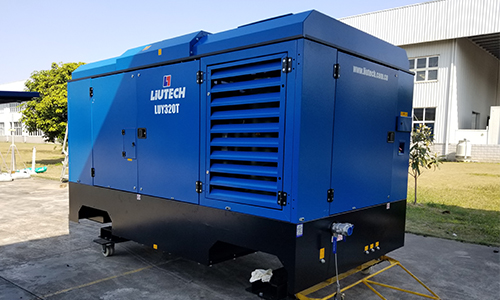

Liutech Screw Air Compressor 320T

OVERVIEW:

Liutech Screw Air Compressor LUY320T is widely used in highway, mining, water conservancy.

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

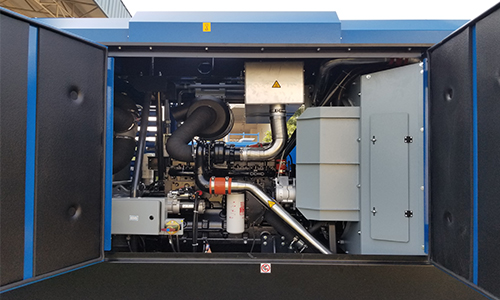

1. It has an advanced electric injection engine. Each model is equipped with a powerful engine and is placed under a strong and thick canopy. The brand new National IV emission engine has better performance, more horsepower and is more environmentally friendly.

2. Multiple fuel filtration, high efficiency, multiple fuel filtration + water separation effectively prevents impurities and moisture from entering the engine, extending the service life of the engine.

3. It has a high-efficiency air filtration system. The high-performance, three-stage filtration air filter prevents dust and particles from entering the machine head and engine, ensuring that the power core operates in an excellent environment. The indicator light on the air filter will automatically remind you when it is time to replace the filter element, eliminating the need for maintenance.

4. Easy to transport, built-in elastic shock absorption + well-designed walking system make it easy for the equipment to be moved and transported on the construction site.

5. With excellent cooling capacity, the equipment can work normally in high temperature environments.

6. It has stepless speed adjustment, fixed controller + air intake valve, which will steplessly adjust the engine speed according to the customer's actual gas demand to achieve the lowest fuel consumption of the equipment.

7. It has an efficient and reliable post-processing system for easy maintenance.

8. It has the most cutting-edge machine head manufacturing technology, asymmetric rotors, and streamlined rotating parts. While ensuring high compression efficiency, it also minimizes the wear of rotating parts and achieves a longer service life of the machine head.

TECHNICAL DATA


Type

LUY320T

Exhaust pressure

26 bar

Volumetric flow rate

two-stage compression

Host compression leve

83±3

Noise decibel (sound pressure, 7 meters)

510L

Fuel tank capacity

85L

Compressor oil capacity

48L

Outlet valve(inch)-quantity x size

1×G2 1×G3/4

Engine brand

KangMingsi

Engine model

L9CS4 430C

Engine KW

316kw

Engine maximum speed

1920 rpm

Overall engine speed

1200 rpm

Engine form

Water-cooled, inline six-cylinder

Length

3520 mm

Width

1800 mm

Height

2150 mm

Weight(excluding diesel)

4600 kg
