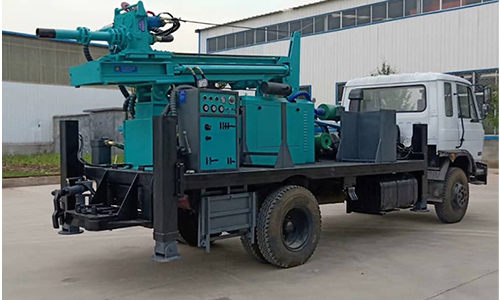

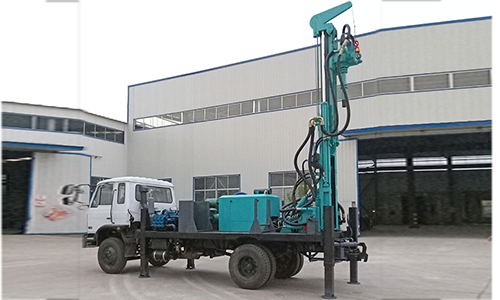

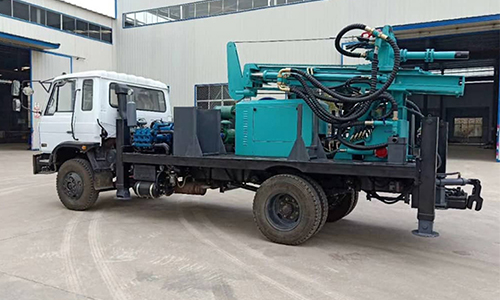

FY-300T Truck Mounted Drilling Rig

OVERVIEW：

Customized product, chassis brand, boom length, mud pump selection, chassis installation air compressor and so on.
Price:60,000-150,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1,Our truck-mounted drilling rig is equiped with a high-pressure screw air compressor and a mud pump at the same time,which can be switched at will under different geological environments and is suitable for all types of drilling projects.

2,We can add a PTO system to the rig according to the customer's prefernce,or we can conigure a separete engine for the rig.

3,Using the principle of pneumatic impact, the drilling footage is fast and efficient. The automobile chassis is adopted,the layout is reasonable and compact, and the operation is simple.

4,The main engine is equipped with a high-power diesel engine with strong power to meet work needs.

5,The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.

TECHNICAL DATA

Type	FY-300T
Drilling Diameter	140-325mm
Max. Drilling Depth	300m
Equiped Capacitor	92KW
The Engine Brand	Yuchai engine
Drill Pipe Diameter	89/102mm
One-time Advance Length	6.6m
Drill Pipe Length	1.5m 2.0m 3.0m 6.0m
Rig Lifting Force	22T
Walking Speed	2.5km/h
Using Air Pressure	1.7-3.4MPA
Air Consumption	17-36m³/min
Hoisting Force Of Winch	2T
Equiped With Hammer	Medium and high wind pressure series
The Penetration Efficiency	15-35m/h
Swing Speed	66-135rpm
Swing Torque	6200-8500N.m
