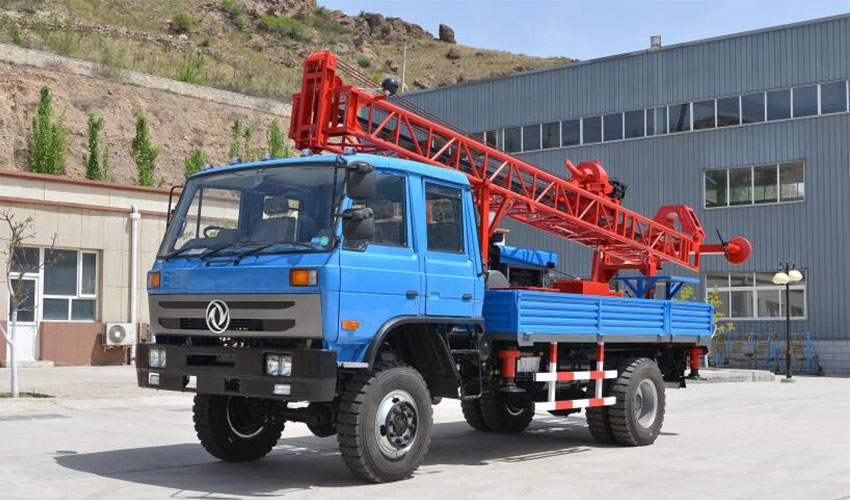

Trucked AKL-400R drilling rig

1. This model is self-propelled by car. The rig is equipped with a special chassis for Dongfeng four-wheel drive off-road double-row seat, Cummins engine, 190 horsepower, wheelbase 4.5 meters, tire 1000 wire tires, front axle 3.6 tons, rear axle 9 tons. Optional tip car is also available. Diesel engine, clutch, gearbox, gearbox, reversing box, power head, lifting hoist, rig, chassis, control system, orifice device, hydraulic hoist system, pump circulation system, generator set, etc. are all installed in the car chassis on.

2. The standard configuration of the drilling rig is driven by a separate diesel engine, or it can be driven by a motor. It can be installed according to customer needs.

3. The power head of the drilling rig is a patented product of our factory. It is designed and manufactured by itself and enjoys intellectual property rights. The main components of the winch, transmission tower, chassis are independently developed and produced by our factory. This model is a mature product developed by our factory for many years. The performance is stable and reliable, and it is well received by domestic and foreign customers.

4. This model can be used in mud drilling and air drilling processes, and is suitable for the construction of clay layer, sand layer and rock layer.
