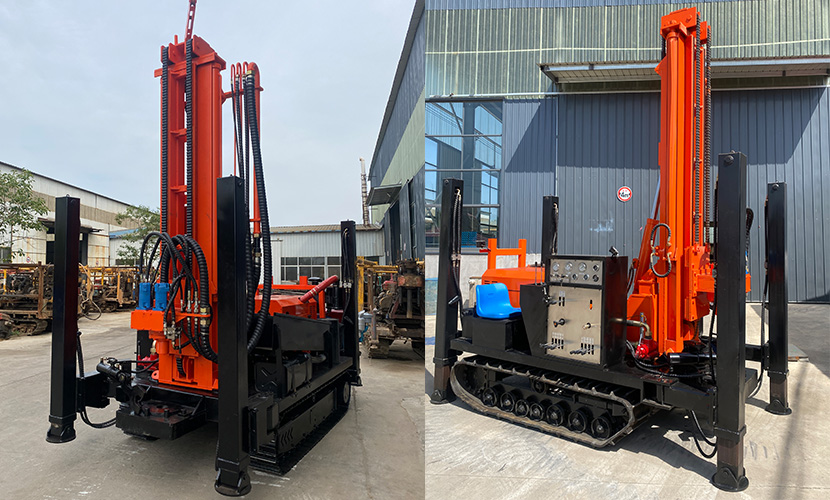

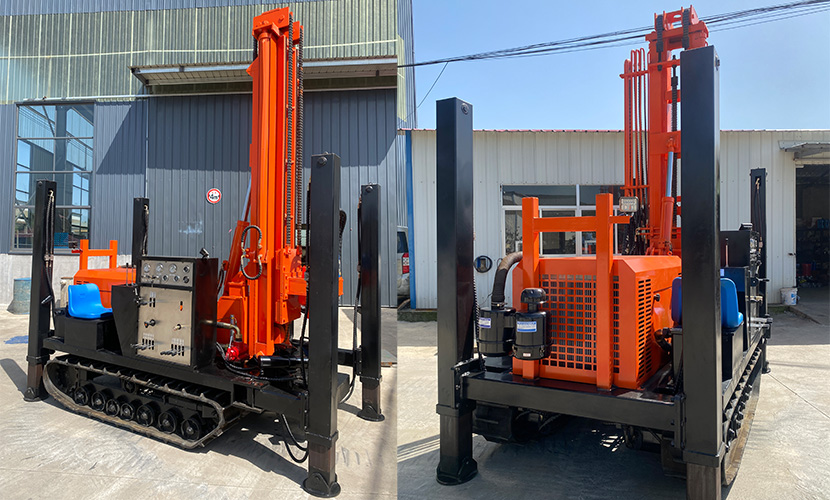

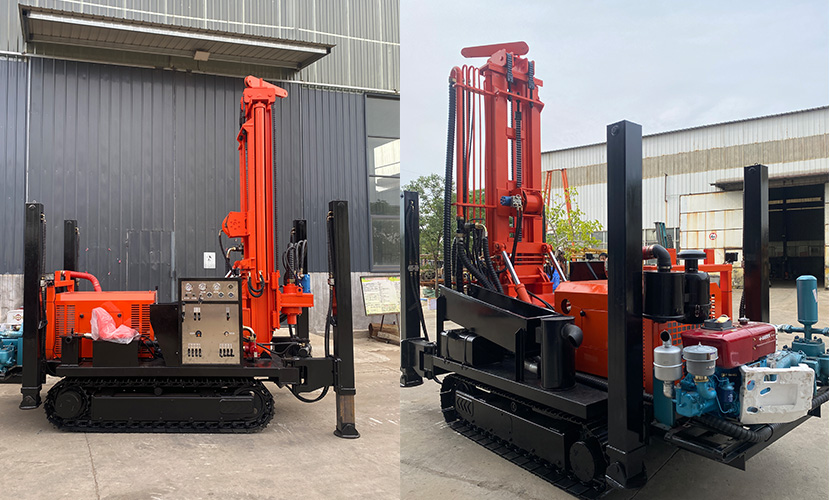

DW200 water well drilling rig.

OVERVIEW：

FEATURES

1. This DW 200 can break through hard rocks layers easily,

2. With crawler system, it can be driven easily in mud area, not easy be stuck.

3. The patented design of the composite boom, double cylinder lift, long trip, high tonnage

4. Parallel transmission design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system

TECHNICAL DATA

Technical Parameters of DW200 Drilling Rig
Type	DW200
The Weight	5.8T
Dimension	4000175002450mm
Drilling Diameter	140-305mm
Drilling Depth	200m
One Push Length	3.4m
Driving Speed	2.5km/h
Climbing Angles	30°
Power	65-70KW
Working Air Pressure	1.7-3.0MPA
Air Consumption	17-30m³/min
Drill Pipe Length	1.5m 2.0m 3.0m
Drill Pipe Diameter	76mm,89mm,102mm
Rig Lifting Force	12T
Swing Speed	45-70rpm
Swing Torque	3500-4800N.m
Swing Torque	3500-4800N.m
