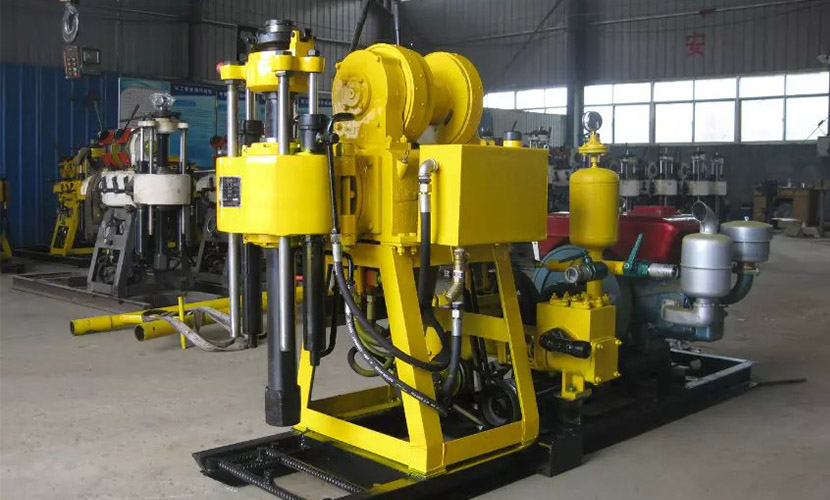

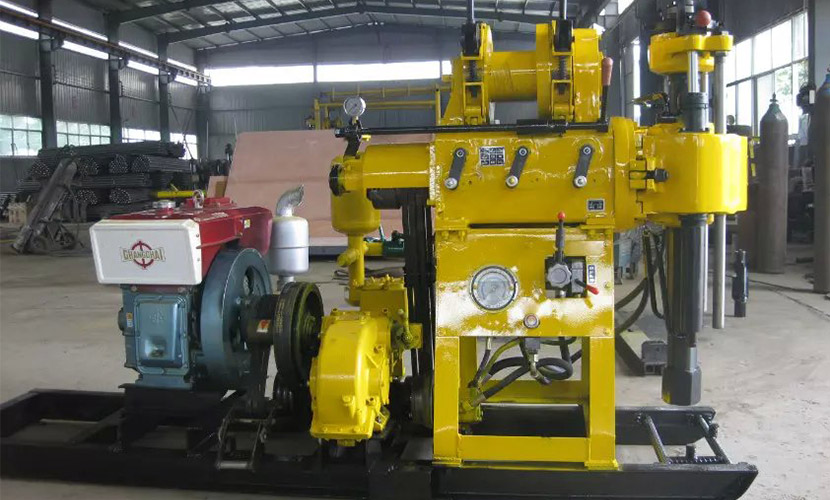

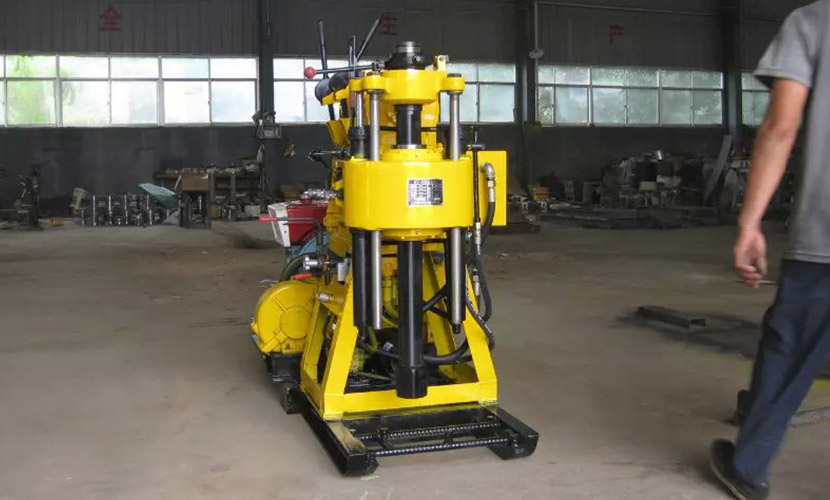

Hydraulic AKL-200L drilling rig

OVERVIEW：

This AKL-200L used for core sample drilling, water well, geoligical. Max 200m depth

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1. It is designed for mining prospecting, geological purpose. with it, we can get core sample easily.
2. It can reach to 200m depth, diameter within 4 inches. also the cheapest model to reach to 200m depth. However, if drill in some bed rock layer, it will be slowly.
3. this type could be used for small diameter water well drilling, too.
4. Normally, this type need to change some seals regularly, need much maintainence after a long time working.
5. With pushing pressure, a little easier to get core sample or break through some rock layer.
6. Work with BW-160 mud pump. which is powerful to pump all cutting out.
7. Extra configuration, electric starter, trailer, sliding system. In China, there are three versions for similar type, capacity ranges from 100m-200m. this is 200m type.
YouTube Link: https://www.youtube.com/watch?v=N5mum_RPIYE&t=1476s

TECHNICAL DATA

Unity machine parameter
Drill depth (m)	200
Maximum open hole caliber (mm)	400
End hole caliber (mm)	75
Drill rod caliber(mm)	50
Drilling angle	90~75
Drill weight(No include power)	760kg
Unity machine dimensions(m)	2.75X0.95X1.60
Spindle
Spindle speed(r/min)	71.142.310.620r/min
Spindle stroke(mm)	450
Hoist
Max. single line hoisting capacity(Kb)	2008kb
Reel lifting speed(rm/s)	17,35,75,160
Tightrope caliber(mm)	13
Tightrope cubic measure(mm)	35
Hug follgate belt width(mm)	70
Mud pump
Type	Horizontal single urn twin-action
Displacement(L/min)	180L/min
Maximum pressure(Mpa)	1.5
Work pressure(Mpa)	0.7
Water inlet caliber(mm)	50mm
Water outlet caliber(mm)	45mm
Power
Diesel engine(HP)	22HP
Speed limit(r/min)	2200
Electric motor(kw)	15
Speed limit(r/min)	1460
