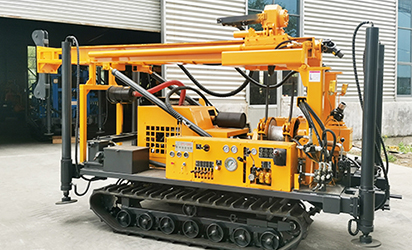

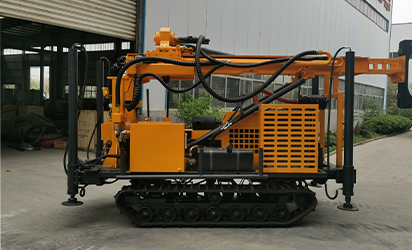

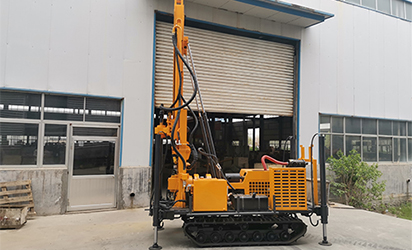

JDL-280 multi-function drilling rig

OVERVIEW：

This JDL-280 is mechanical transmission top drive drilling rig. used to drill 280m depth, 300mm max for exploration, water well.
PRICE: 20,000 -30,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1. This JDL-280 is mechanical transmission top drive drilling rig, rotation power comes from gearbox.
2. Different Rpm. from 11-1120, so well used for air drilling, core exploration drilling, wire line drilling,
3. It can do both mud and pneumatic drilling.
4. With rubber track, then easy to move in working site.
5. Easy to maintain, low cost. do different drilling project.

TECHNICAL DATA

SPECIFICATON OF DRILLING RIG
Small Diameter Mud Drilling Depth	450m
NQ Wire Line Drilling	400m
Air Drilling Depth	280m
Drilling Diameter	115-350mm
Lifiting Capacity	10 ton
Pushing Down Capacity	5 ton
Rotary Speed	33/63/113/162/192/237/303/537/906/1120
Max Torque	9800 N.M
Drilling Method	Mud and Air Drilling
Engine Model	YN27
Reverse Thrust Capacity	7 Ton
Engine	YUNNEI
Rated Power	42kw
Mechanical Winch	4.5 ton
Drilling Rods Diameter	76mm/89mm
Drilling Rods Length	2000mm
Air Consumption	16-35m³min
Air Pressure	10.5-24.6 bar
Driving Speed	2.5km/h
Climbing Angle	20 °
Measurement	460015702300mm
Weight	3800kg
