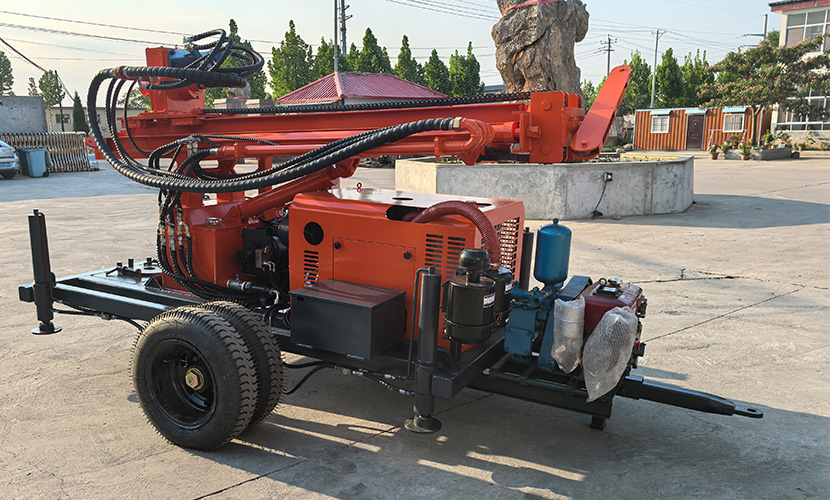

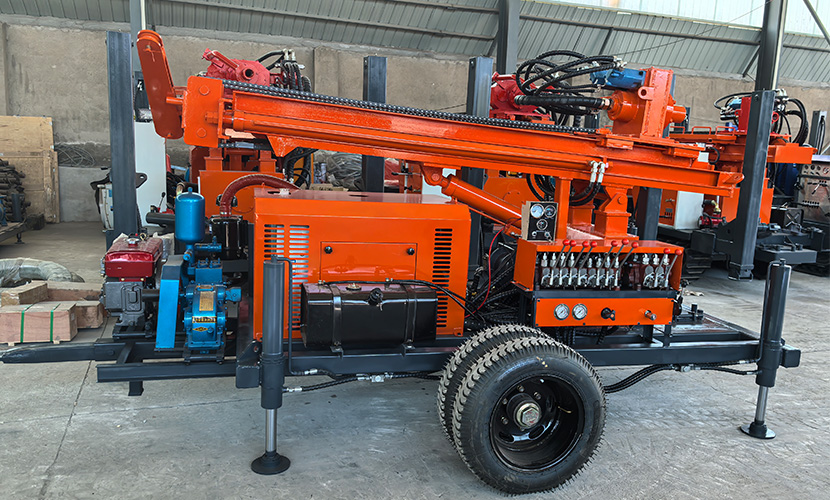

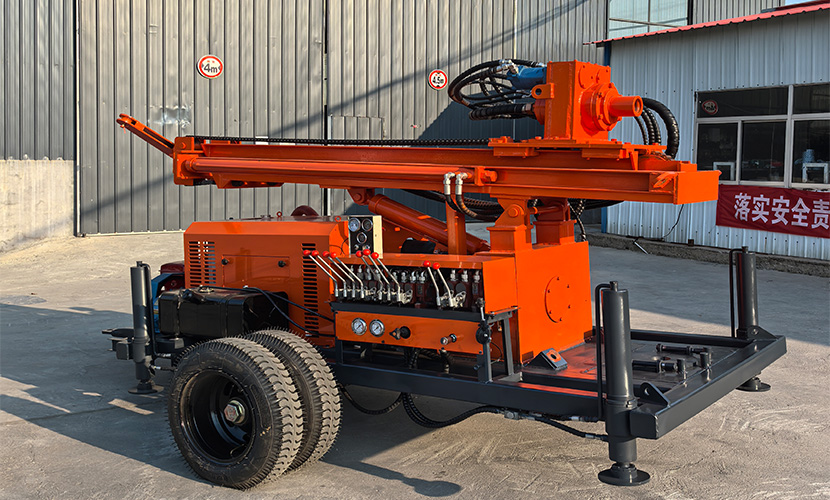

Wheel drilling rig DW150T

OVERVIEW：

This wheeled DW150T drilling rig has a depth of 150m and uses air drilling in rocky areas.

We're here to help:

Easy ways to get the answers you need.

Leave Message

akldrill@gmail.com
+86-15137425291

FEATURES

1. DW 150 can easily break through hard rock formations,

2. It adopts wheeled system, which is compact and easy to move.

3. Patented design of composite arm, double cylinder lifting, long stroke, high tonnage

4. Parallel transmission design, independent oil pump, sufficient power supply, reasonable distribution, unique hydraulic system design

TECHNICAL DATA

Drilling diameter (mm)	140-254
Drilling depth (m)	150
Drilling frame stroke (m)	3.6
Drilling pipe diameter (mm)	76-89
Working pressure (Mpa)	1.7-3.0
Air consumption (m³/min)	17-31
Slewing speed (rpm)	45-70
Rotation torque (N/M)	3500-4800
Rig lifting force (T)	10
Diesel engine power (Kw)	42
Size (M)	3.61.61(wheel 2.72)2.05
Weight (T)	3
